Ürün ayrıntıları:
|
| Dış Çap: | 6" (152mm) | Uzunluk: | 60 "(1524mm) |
|---|---|---|---|
| Medyayı Filtrele: | Polipropilen (PP) Büzgülü | Filtreleme Değerlendirmesi: | 1, 5, 10, 15, 20, 50, 70, 100 μm |
| Filtrasyon alanı: | 6,6 m² | Akış yönü: | İçeriden Dışarıya |
| Maksimum akış hızı: | 110 m³/saat | Özellik: | %99,8 |
| Maksimum çalışma sıcaklığı: | 82°C | Maksimum Fark Basıncı: | 3,44 bar @ 82°C |
| Uç Kapağı Malzemesi: | Cam Elyaf Takviyeli Polipropilen | Mühür Malzemesi: | NBR, Silikon, EPDM, Viton |
| Öneri değiştirme basıncı: | 2,5 Bar @ 20°C | ||
| Vurgulamak: | 110m3 per Hour Flow Rate,60 Inch Extended Service,Power Plant Condensate Filtration |
||

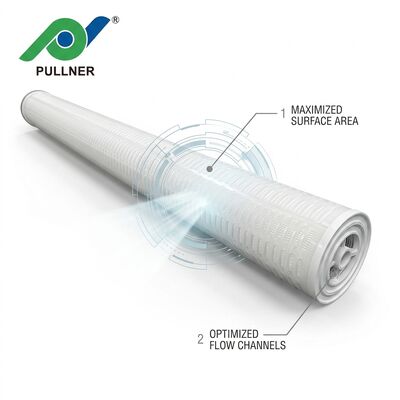

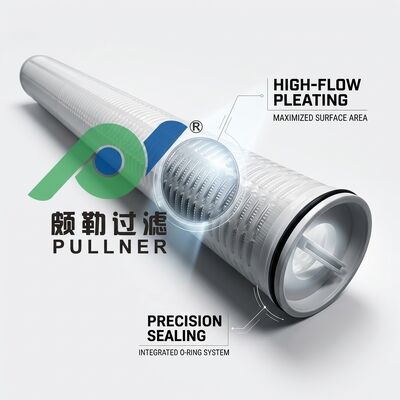

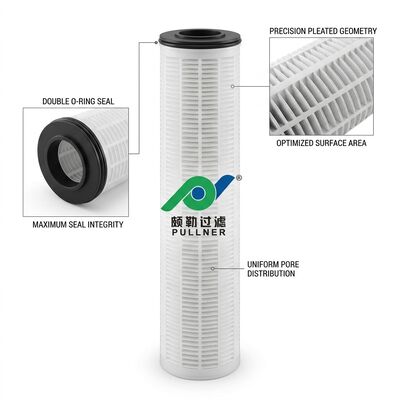

The PHFL-60 is a heavy-duty 60-inch (1524mm) large capacity high flow filter cartridge engineered specifically for high-volume industrial water treatment applications, most notably power plant condensate polishing systems where sustained flow rates of up to 110 cubic meters per hour per single cartridge are required. Featuring a 6-inch (152mm) outer diameter and advanced deep pleated polypropylene filter media, the PHFL-60 combines exceptional dirt holding capacity with
