PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity
PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity
PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Büyük resim :  PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: PULLNER
Sertifika: ISO 9001
Model numarası: PLX
Ödeme & teslimat koşulları:
Min sipariş miktarı: 50
Fiyat: To be negotiated
Ambalaj bilgileri: Ahşap kutu paketi
Teslim süresi: 7-10 iş günü
Ödeme koşulları: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Yetenek temini: Günde 100 adet
İletişim

PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Açıklama
Vurgulamak:

Honeycomb Structure String Wound Filter Cartridge

,

Small Pressure Drop High Flow Filter Cartridge

,

Large Pollutant Holding Capacity PLX Series Filter Cartridge

PLX Series String Wound Filter Cartridge

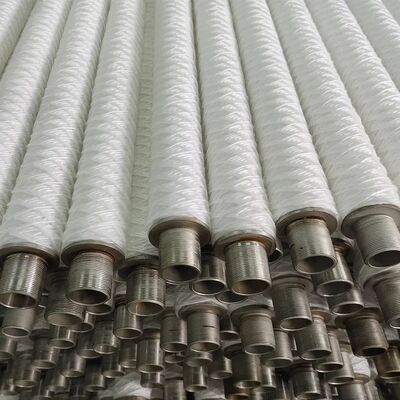

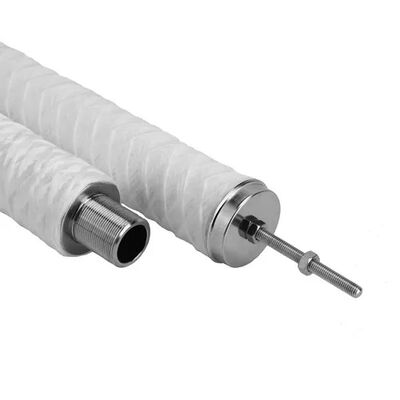

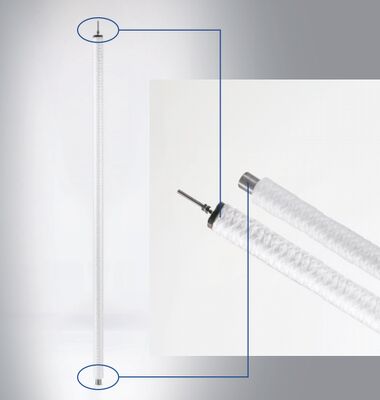

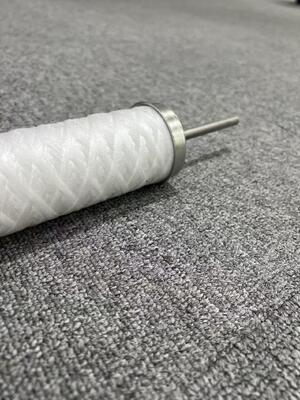

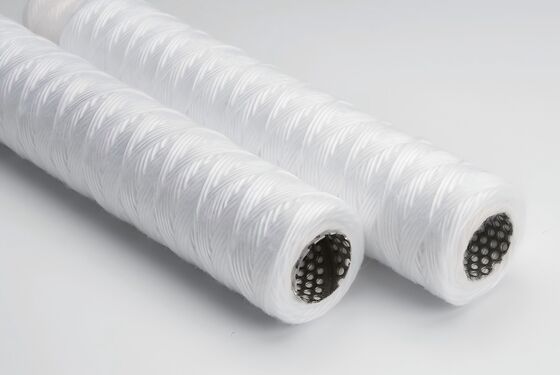

The PLX series filter cartridge is engineered using textile fibers—including polypropylene, absorbent cotton, or glass fiber—manufactured through a specialized winding process. These fibers are tightly wound around a porous framework constructed from either polypropylene (PP) or stainless steel (SS) porous tubes.
This unique manufacturing process creates a honeycomb filtration structure characterized by sparse outer layers and dense inner layers, providing exceptional filtration performance for industrial applications.
Key Performance Features:
  • Effective removal of suspended solids from fluids
  • Efficient filtration of rust particles and various impurities
  • Minimal pressure drop across the filter media
  • High contaminant holding capacity for extended service life
  • Robust construction suitable for demanding industrial environments
Length: 40‘’ Diameter: 2'' To 2.5''(50mm To 63.5mm )
Micron: 5μm Max. Operating Temperature: 121℃
Suggestion Max Flow: 40'': 78m³/h Suggestion Pressure For Filter Replacement: 2.5Bar@20℃
Suggestion Design Flow: 40'': 18-25m³/h Inside Diameter: 28mm,30mm
String Material: PP/CO/GF/FO
Highlight:

solid Removal 5 micron filter cartridge

,

pp sediment filter 5 micron cartridge

,

polypropylene filter cartridge 5 micron


Material Construction

Filter media

PP:Polypropylene

CO:Degreasing Cotton

GF:Glass Fiber

FO:Organic Fiber
Center Core PP, Stainless Steel 304, 316L



PLX series filter cartridge is made of textile fiber (polypropylene, absorbent cotton or glass fiber) according to a specific process, tightly wound on a porous framework (PP or SS porous tube) to form a honeycomb structure with sparse outside and dense inside, which can effectively filter suspended solids in the fluid, Rust, particles and other impurities, with the characteristics of small pressure drop and large pollutant holding capacity.


Performance

Maximum Operating Temperature

PP:60℃

CO:120℃

GF:200℃

FO:120℃
Maximum Operating Differential Pressure 4.0bar
Recommend change-out Differential Pressure 2.0bar



Ordering Information

     PLX                                            A3                                              0500                                40

Series Filter Layer/Center core Material Micron Length
PLX A1=PP/PP 0100 =1.0μm 05 =5"

A2=PP/SS(Stainless Steel) 0300 =3.0μm 10 =10"

A3=Degreasing Cotton/SS 0500 =5.0μm 20 =20"

A4=Glass Fiber/SS 1000 =10μm 30 =30"

A5=FO/SS 2500 =25μm 40 =40"


7500 =75μm 50 =50"


10000 =100μm 60 =60"




15000 =150μm 70 =70

Etiket:

yara polipropilen filtre kartuşu,

dize yara su filtresi kartuşları,

dize yara kartuşu
