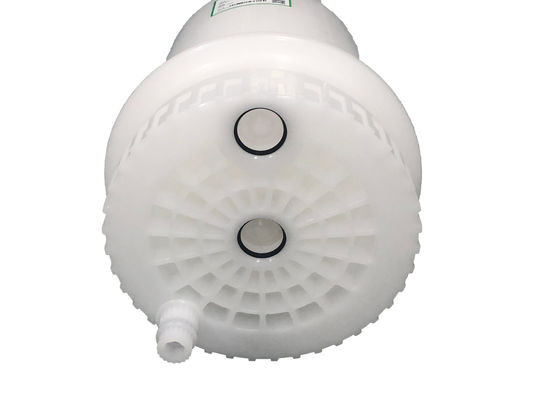

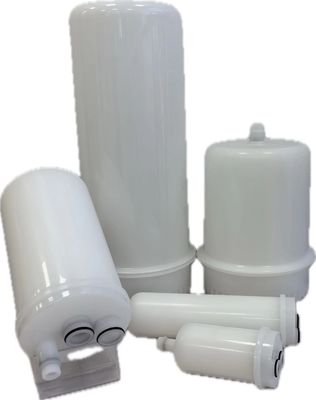

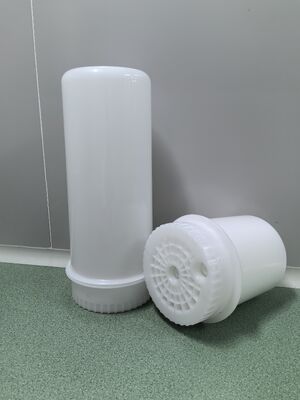

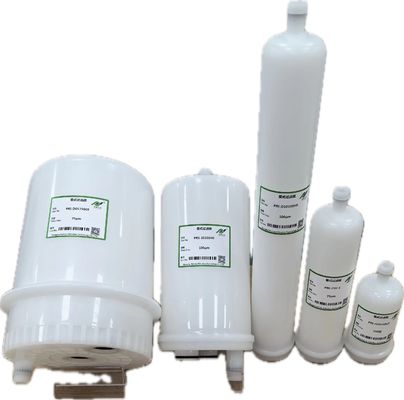

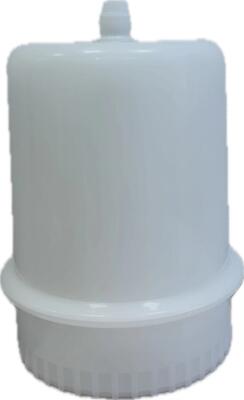

PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores

PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores
PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores

Büyük resim :  PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores

Ürün ayrıntıları:
Menşe yeri: Şangay Çin
Marka adı: PULLNER
Sertifika: ISO 9001/ISO 14001
Model numarası: PRS Serisi
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: To Be Negotiate
Ambalaj bilgileri: Poli çantadan sonra karton kutu
Teslim süresi: 7-10 İş Günü
Ödeme koşulları: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Yetenek temini: HAFTALIK 1000+PCS
İletişim

PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores

Açıklama
Vurgulamak:

Ultra-High Flow Capsule Filter

,

High-Speed Coating Filter Cartridge

,

7 Wound Filter Cores PRS Series Filter

PRS Series Capsule Filter for Lithium Battery Slurry Filtration
Product Introduction

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.

Application Fields
  • Slurry filtration
  • Coating liquid filtration
  • Colloidal product filtration
  • Filtration of liquids containing toxic or hazardous substances
Flow Rate Curve and Product Structure
PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores 0 PRS Series Ultra-High Flow Capsule Filter for High-Speed Coating with 7 Wound Filter Cores 1
Product Specifications
Model PRS
Length 378mm
OD 250mm
Media Material PP
Material of Outer Core PP
Thread type of the vent valve 1/4" NPT
Design Pressure 0.8Mpa
Maximum Operating Pressure 0.5Mpa@20℃
Maximum Operating Temperature 80℃
Order Information

PRS --10-- 100H-- E

Series Length Micron O-ring
PRS 10=10" 0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm 100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm E=EPDM
Frequently Asked Questions
Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.
Q2: Can you provide samples?
A2: We offer 1-2 free samples. Buyers only need to cover the shipping cost.
Q3: What is the delivery time?
A3: Delivery time is usually within 5-10 days depending on the order quantity.
Product Name Daily Production Capacity
High Flow Filter Cartridge 500 pcs/day
Condensate Filter Element 200 pcs/day
Microporous Pleated Filter Cartridge 200 pcs/day
Membrane Filter Cartridge 100 pcs/day
Q4: Is the filtration accuracy nominal or absolute?
A4: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.
Q5: Which brands can your filters replace?
A5: Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.
Q6: What is the minimum order quantity (MOQ)?
A6: As a manufacturer, we accept a minimum order quantity of just 1 piece.
