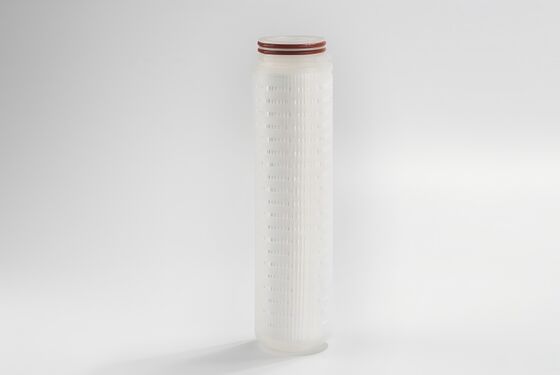

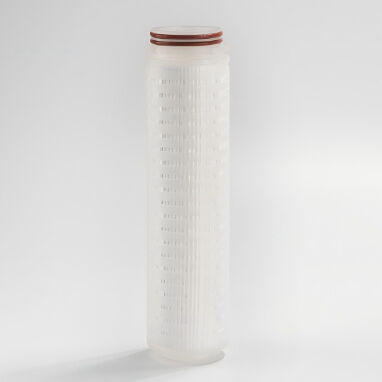

PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect
PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

Büyük resim :  PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: PULLNER
Sertifika: FDA/ISO 9001/ISO 14001
Model numarası: PLGF
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10
Fiyat: To be negotiated
Ambalaj bilgileri: Bireysel poli torbadan sonra karton kutuda paketlenmiştir.
Teslim süresi: 1 ay
Ödeme koşulları: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Yetenek temini: günde 50 adet
İletişim

PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

Açıklama
Vurgulamak:

Ultra-fine Glass Fiber Material Glass Microfiber Filter Cartridge

,

High Dirt Holding Capacity Glass Microfiber Filter Cartridge

,

Inherent Adsorption Effect Glass Microfiber Filter Cartridge

PLGF Series - Glass Microfiber Filter Cartridge for Liquid
The PLGF series filter cartridge is constructed from ultra-fine glass fiber material, offering high dirt holding capacity and inherent adsorption properties. Designed for filtering liquids containing colloids, grease, and high particle content, this glass fiber filter cartridge delivers exceptional performance with particle interception efficiency up to 98%.
Key Features
  • High efficiency filtration with 98% particle interception rate
  • Low initial differential pressure for optimal flow performance
  • Large flow rate capacity
  • Extended service life due to high dirt holding capacity
  • Effective for liquids containing colloids, grease, and high particle content


Galss Fiber OD2.7" 98% PLGF Liquid Filter Membrane Filter Cartridge

Description
Diameter: 69mm Length: 10"
Filter Medium: PP Filtration Rating: 0.1um-100um
MOQ: 1 Piece Delivery Time: 1 Month
Sealing Material: Silicone/Viton/PEP/EPDM Max. Operating Temperature: 80℃
Max. Operating Different Pressure: 4bar/21℃
Highlight:

PLGF liquid filter cartridge

,

2.7" PP Filter Cartridge

,

PLGF membrane filter cartridge


Ordering Information

PLGF                    0500                         10                            C1                                            E

Series Micron Length End Cap Type Seal Material
PLGF 0010 =0.1μm 05 =5" C1 =226/Spear E =EPDM

0020 =0.2μm 10 =10" C3 =222/Spear S =Silicone

0045 =0.45μm 20 =20" C5 =222/Flat V =Viton

0100 =1.0μm 30 =30" C6 =226/Flat P =FEP

0300 =3.0μm 40 =40" C9 =DOE


0500 =5.0μm






1000 =10μm





PLGF Liquid Filtration Glass Fiber Membrane Filter Cartridge

The PLGF series filter cartridge is made of ultra-fine Glass fiber material, has high dirt holding capacity and inherent adsorption effect. It is especially suitable for filtering liquids containing colloids, grease and high particle content. The glass fiber filter cartridge has good particle interception efficiency up to 98%, and low initial differential pressure, large flow rate, and long service life.


Material Construction

Filter media Ultrafine Glass fiber
Support/Drainage Polypropylene
Cage/Core/End Caps Polypropylene
Seal Material EPDM, Silicone, Viton, FEP


Performance

Filtration rating 0.1μm, 0.2μm, 0.45μm, 1μm, 3μm, 5μm, 10μm
Maximum Operating Temperature 80℃
Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃


Chemical Compatibility

Acetic Acid R Benzene R
Ethyl Alcohol R Oil R
KOH NR Aceton(e) R
Ethyl acetat(e) R Diethyl (E)ther R

NR:No Recommend R:Recommend
