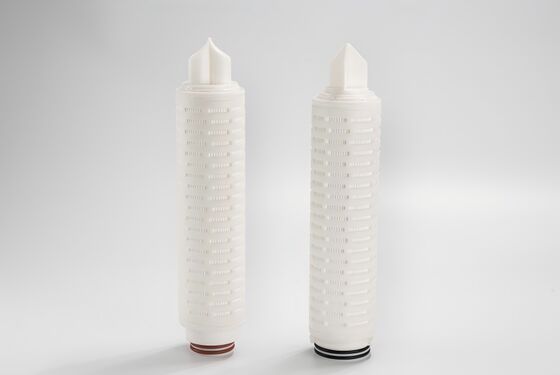

PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

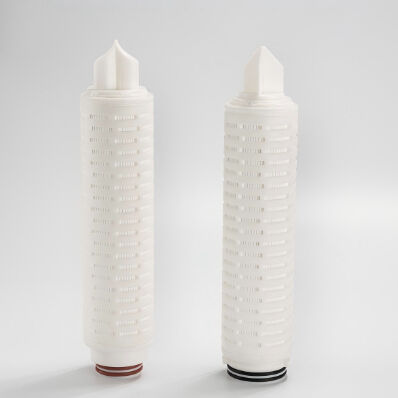

Büyük resim : PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	PULLNER
Sertifika:	FDA/ISO 9001/ISO 14001
Model numarası:	PBT

Ödeme & teslimat koşulları:

Min sipariş miktarı:	10
Fiyat:	To be negotiated
Ambalaj bilgileri:	Bireysel poli torbadan sonra karton kutuda paketlenmiştir.
Teslim süresi:	2 ay
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Yetenek temini:	haftada 50 adet

İletişim

PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

Açıklama

Vurgulamak:

All Polyester (PET) High Flow Filter Cartridge

120°C High Temperature Filter Cartridge

4 Bar Working Pressure High Flow Filter Cartridge

PBT Series - All Polyester (PET) Filter Cartridge

The PBT series filter cartridge is constructed entirely from Polyester (PET) material, specifically engineered for precision filtration of liquids containing aromatic hydrocarbon solvents such as benzene and toluene.

Made from durable Polyester (PET) material for superior chemical resistance
Designed for filtration of aromatic hydrocarbon solvents including benzene and toluene
Excellent temperature resistance - withstands 120°C for extended periods
Robust pressure tolerance - handles 4 bar working pressure differential

Diameter:	69mm	Length:	10"
Filter Medium:	PBT	Filtration Rating:	0.2um-50um
MOQ:	1 Piece	Delivery Time:	1 Month
Sealing Material:	Silicone/Viton/PEP/EPDM	Max. Operating Temperature:	120℃
Max. Operating Different Pressure:	4bar/21℃
Highlight:	PBT Membrane Filter Cartridge , 69mm Membrane Filter Cartridge , 222 0.45 Micron Filter Cartridge

Ordering Information

PBT 0020 10 C1 E

Series	Micron		Length		End Cap Type		Seal Material
PBT	0020	=0.2μm	05	=5"	C1	=226/Spear	E	=EPDM
	0045	=0.45μm	10	=10"	C3	=222/Spear	S	=Silicone
	0100	=1.0μm	20	=20"	C5	=222/Flat	V	=Viton
	0500	=5.0μm	30	=30"	C6	=226/Flat	P	=FEP
	1000	=10μm	40	=40"	C9	=DOE
	2500	=25μm
	5000	=50μm

PBT Polyester Membrane Filter Cartridge

The PBT series filter cartridge is made of all Polyester (PET) material, which can meet the precision filtration of benzene, toluene and other liquids containing aromatic hydrocarbon solvents. The Polyester material has good temperature and pressure resistance, can withstand 120℃ high temperature for a week, and 4 bar working pressure difference.

Performance

Filtration rating

0.2μm, 0.45μm, 1μm, 5μm, 10μm, 25μm, 50μm

Maximum Operating Temperature

120℃

Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃

Material Construction

Filter media	Polyester (PET)
Support/Drainage	Polyester (PET)
Cage/Core/End Caps	Polyester (PET)
Seal Material	EPDM, Silicone, Viton, FEP

Chemical Compatibility

Benzene	R	CCl₄	R
Xylene	R	Tetrahydrofuran	R
Aceton(e)	R	Gasoline	NR
Trichloroethylene	R	Acid	NR

NR:No Recommend R:Recommend
